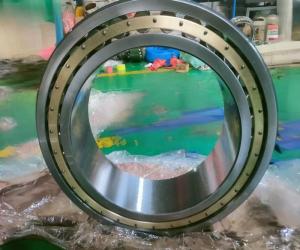

C3096 KM/VE635 Bearing – High-Capacity Cylindrical Roller Bearing with locking grooves
The C3096 KM/VE635 bearing is a robust, high-precision cylindrical roller bearing designed for heavy-duty industrial applications. Manufactured to handle extreme radial loads and accommodate shaft misalignment or expansion, it is ideal for industries such as mining, metallurgy, paper manufacturing, and cement production.
Technical Specifications – C3096 KM/VE635
Parameter Value
Bearing Designation C3096 KM/VE635
Bearing Type Cylindrical Roller Bearing (CARB)
Bore Diameter (d) 480 mm
Outer Diameter (D) 700 mm
Width (B) 165 mm
Dynamic Load Rating (C) 1,850 kN
Static Load Rating (C₀) 2,700 kN
Limiting Speed 670 rpm (grease) / 850 rpm (oil)
Weight Approx. 200 kg
Cage Material Machined brass, roller centered
Taper Bore 1:12
Mounting Method locking grooves (VE635)
Product Highlights
CARB Toroidal Bearing Design
The C3096 KM/VE635 uses CARB bearing technology (Cylindrical And Roller Bearing), which combines the benefits of spherical and cylindrical bearings for reduced friction and better alignment.
High Load-Carrying Capacity
Engineered for heavy radial loads and limited axial loads, perfect for demanding mechanical systems with shaft displacement.
Easy Mounting and Dismounting
The KM/VE635 locking grooves simplifies installation, especially on stepped shafts, saving maintenance time and cost.
Long Service Life
The bearing's advanced design reduces internal stress and heat generation, ensuring longer operating periods with minimal wear.
Ideal for Axial Displacement Compensation
Floating bearing configuration allows axial shaft movement without compromising performance—crucial for thermal expansion scenarios.
Application Industries
Mining & Quarry Equipment
Pulp & Paper Mills
Cement Plants
Steel & Rolling Mills
Industrial Gearboxes and Motors
Why Choose C3096 KM/VE635 Bearings from Us?
We offer original or OEM-compatible C3096 KM/VE635 bearings with guaranteed quality, competitive pricing, and fast delivery worldwide. Our technical team ensures compatibility and provides installation support if needed.
Global Delivery | OEM Support | High-Load Bearings Available from Stock
Download our product overview table to get a complete insight into the solutions we provide across various industries.
If the size required is not available please get in touch to di
